CB711-95 Spek Anchor
Andy Marine is a large heavy industry enterprise specializing in the research and production of CB711-95 Spek Anchor.
Send Inquiry
Product Description

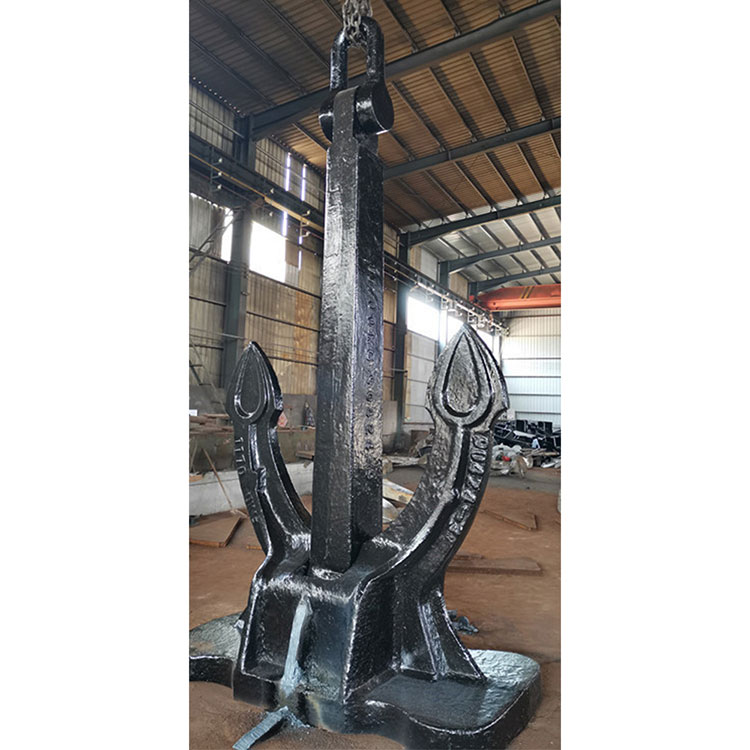

CB711-95 Spek Anchor
Carbon Steel Speck anchor is the improved type anchor of hall anchor. The structure is simple and easy to collection, proven high holding power, good stability, used as the bower anchor at large or medium-size ship .
Marine Speck anchor weight are from 100kgs to 18800kgs , it is a commonly used conventional stockless anchor found throughout the commercial shipping and cruise vessel markets. Its smart design makes it a perfect fit for the anchor pocket, making a seamless connection with the anchor and the bow of the vessel. Besides, Its additional proven performance makes the Cast Steel Speck anchor an attractive anchor for your ship.
INVENTORY
Whether you need anchors, chains or towing equipment, you will find it at ANDY MARINE. We keep a wide range of products in stock to prevent ordering delays. The result for you? Get what you need and get back in business with minimal downtime. It’s as simple as that. If you need advice with making the right choice, don’t hesitate to ask one of our knowledgeable team.
Specifications
|
NOMINAL WEIGHT(KG) |
SIZE(mm) | ||||
| A | B | C | D | F | |
| 100 | 672 | 373 | 112 | 515 | 250 |
| 150 | 770 | 428 | 128 | 590 | 290 |
| 180 | 846 | 470 | 140 | 640 | 300 |
| 240 | 900 | 500 | 150 | 690 | 358 |
| 300 | 990 | 550 | 166 | 760 | 398 |
| 360 | 1065 | 600 | 180 | 828 | 411 |
| 420 | 1080 | 600 | 180 | 828 | 431 |
| 500 | 1170 | 650 | 196 | 900 | 450 |
| 570 | 1170 | 650 | 196 | 900 | 475 |
| 660 | 1260 | 700 | 210 | 960 | 486 |
| 780 | 1355 | 750 | 225 | 1032 | 519 |
| 900 | 1440 | 800 | 240 | 1100 | 547 |
| 1020 | 1530 | 850 | 252 | 1170 | 573 |
| 1140 | 1620 | 900 | 268 | 1240 | 591 |
| 1290 | 1710 | 900 | 268 | 1240 | 620 |
| 1440 | 1710 | 950 | 279 | 1300 | 640 |
| 1590 | 1710 | 950 | 279 | 1300 | 671 |
| 1740 | 1800 | 1000 | 300 | 1378 | 689 |
| 1920 | 1850 | 1050 | 312 | 1454 | 704 |
| 2100 | 1890 | 1050 | 312 | 1454 | 717 |
| 2280 | 2010 | 1050 | 312 | 1454 | 736 |
| 2460 | 2010 | 1100 | 324 | 1514 | 764 |
| 2640 | 2070 | 1150 | 352 | 1584 | 794 |
| 2850 | 2070 | 1150 | 352 | 1584 | 804 |
| 3060 | 2160 | 1200 | 360 | 1650 | 820 |
| 3300 | 2155 | 1200 | 360 | 1650 | 834 |
| 3540 | 2350 | 1200 | 360 | 1650 | 834 |
| 3780 | 2430 | 1350 | 393 | 1850 | 880 |
| 4050 | 2430 | 1350 | 393 | 1850 | 917 |
| 4320 | 2520 | 1400 | 413 | 1926 | 917 |
| 4590 | 2520 | 1400 | 413 | 1926 | 951 |
| 4890 | 2520 | 1400 | 413 | 1926 | 954 |
| 5250 | 2610 | 1450 | 414 | 2000 | 964 |
| 5610 | 2610 | 1450 | 414 | 2000 | 981 |
| 6000 | 2700 | 1500 | 446 | 2060 | 1006 |
| 6450 | 2700 | 1500 | 446 | 2060 | 1028 |
| 6900 | 2790 | 1550 | 456 | 2138 | 1034 |
| 7350 | 2790 | 1550 | 456 | 2138 | 1062 |
| 7800 | 2920 | 1550 | 456 | 2138 | 1091 |
| 8300 | 3060 | 1700 | 510 | 2332 | 1126 |
| 8700 | 3060 | 1700 | 510 | 2332 | 1156 |
| 9300 | 3060 | 1700 | 510 | 2332 | 1169 |
| 9900 | 3160 | 1700 | 510 | 2332 | 1188 |
| 10500 | 3190 | 1770 | 531 | 2440 | 1188 |
| 11100 | 3290 | 1770 | 531 | 2440 | 1212 |
| 11700 | 3390 | 1770 | 531 | 2440 | 1237 |
| 12300 | 3440 | 1910 | 573 | 2632 | 1279 |
| 12900 | 3440 | 1910 | 573 | 2632 | 1279 |
| 13500 | 3440 | 1910 | 573 | 2632 | 1316 |
| 14100 | 3440 | 1910 | 573 | 2632 | 1353 |
| 14700 | 3690 | 2050 | 615 | 2824 | 1369 |
| 15400 | 3690 | 2050 | 615 | 2824 | 1369 |
| 16100 | 3690 | 2050 | 615 | 2824 | 1387 |
| 16900 | 3820 | 2120 | 636 | 2922 | 1415 |
| 17800 | 3950 | 2120 | 636 | 2922 | 1431 |
| 18800 | 3950 | 2190 | 657 | 3018 | 1461 |
| 20000 | 4070 | 2190 | 657 | 3018 | 1493 |
| 26000 | 4250 | 2360 | 716 | 3256 | 1618 |
